OEM

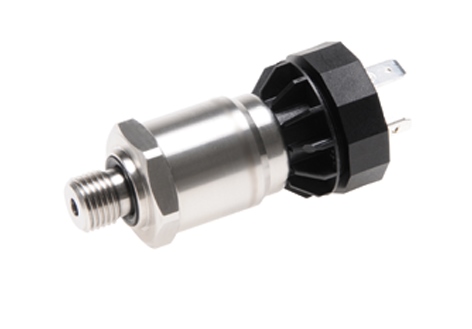

Pressure sensor 501
Range: -1 ... 0 - 60 bar
The pressure transmitter of type 501 with
proved ceramic technology, features adjusted and amplified sensor signals
which are available as standardised current outputs. Various
application-specific pressure and electrical connections can be provided.
Fixed order quantities on request
Medium: Liquids and
gases
Pressure range: -1 ...
0 — 60 bar
Output: ratiom. 10%
... 90%, 0 ... 5 V, 1 ... 6 V 0 ... 10 V, 4 ... 20 mA
Accuracy: < 0.5% fs
Electrical connection:
Connector DIN EN 175301-803-A or C, M12x1, Cable 1.5 m
Pressure connection: Inside
thread or outside thread
+ Compact construction
+ Automated manufacture in large quan tities
for ideal price / performance ratio
+ Rugged ceramic sensor technology
+ No mechanical creepage
+ High resistance to extreme temperatures
