Flow
sensor 210
Flow range: 0.5 ... 150 l/min

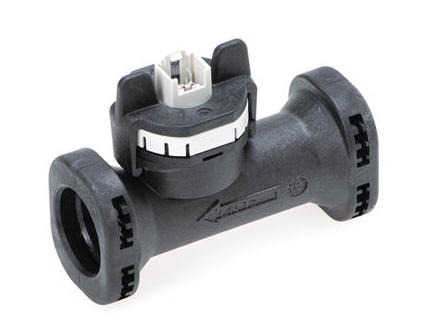

In comparison to the OEM flow sensor (type
200) the type 210 is available with a larger variety concerning power supply
and outputs. You can choose between various versions as integrated temperature
measurement. This flow sensor without moving parts is insensitive to
pollution and persuade by very few loss of pressure and a very high accuracy.
Medium: Fluides
Flow range: 0.5 ...
150 l/min.
Nominal diameters: DN
6 / 8 / 10 / 15 / 20 / 25
Output: Frequency
output 12 ... 483 Hz, Analogue signal 0 ... 10 V, 4 ... 20 mA
Temp. measurement: PT1000,
0 ... 10 V
Electrical connection:
M12x1
Tube connection: Plastic
- connection copper tube, Plastic - outside thread
+ Flow measuring with voltage, current, pulse
or frequency output
+ Excellent media resistance (measuring
element not in contact with the media)
+ Available with integrated temperature
measurement
+ Temperature non-sensitive measuring
principle
+ Wide application temperature range
+ Marginal loss of pressure
+ Measuring element not sensitive to debris
+ Drinking water approval KTW, W270, WRAS, ACS
Product code use: 210.906241K, 210.910241K,
210.910441K, 210.915241K, 210.920241K, 210.920441N, 210.925241K,
